# Change badge size

Resize text and image badges for desktop, mobile, product pages, and listing pages.

Use the **Size** section in the badge editor to resize a badge everywhere or set a different size for each device and page type.

## Open the Size section

{% stepper %}
{% step %}

## Open Badges & Labels

In Shopify admin, open **Sami Product Labels > Badges & Labels**.
{% endstep %}

{% step %}

## Select a badge

Find the badge you want to resize, then click **Edit badge/label** in its row.

To resize a new badge instead, click **Create badge** and choose **Text badge** or **Image badge**.
{% endstep %}

{% step %}

## Expand Size

In the badge editor, stay on the **Design** tab, scroll to **Size**, and expand the section.

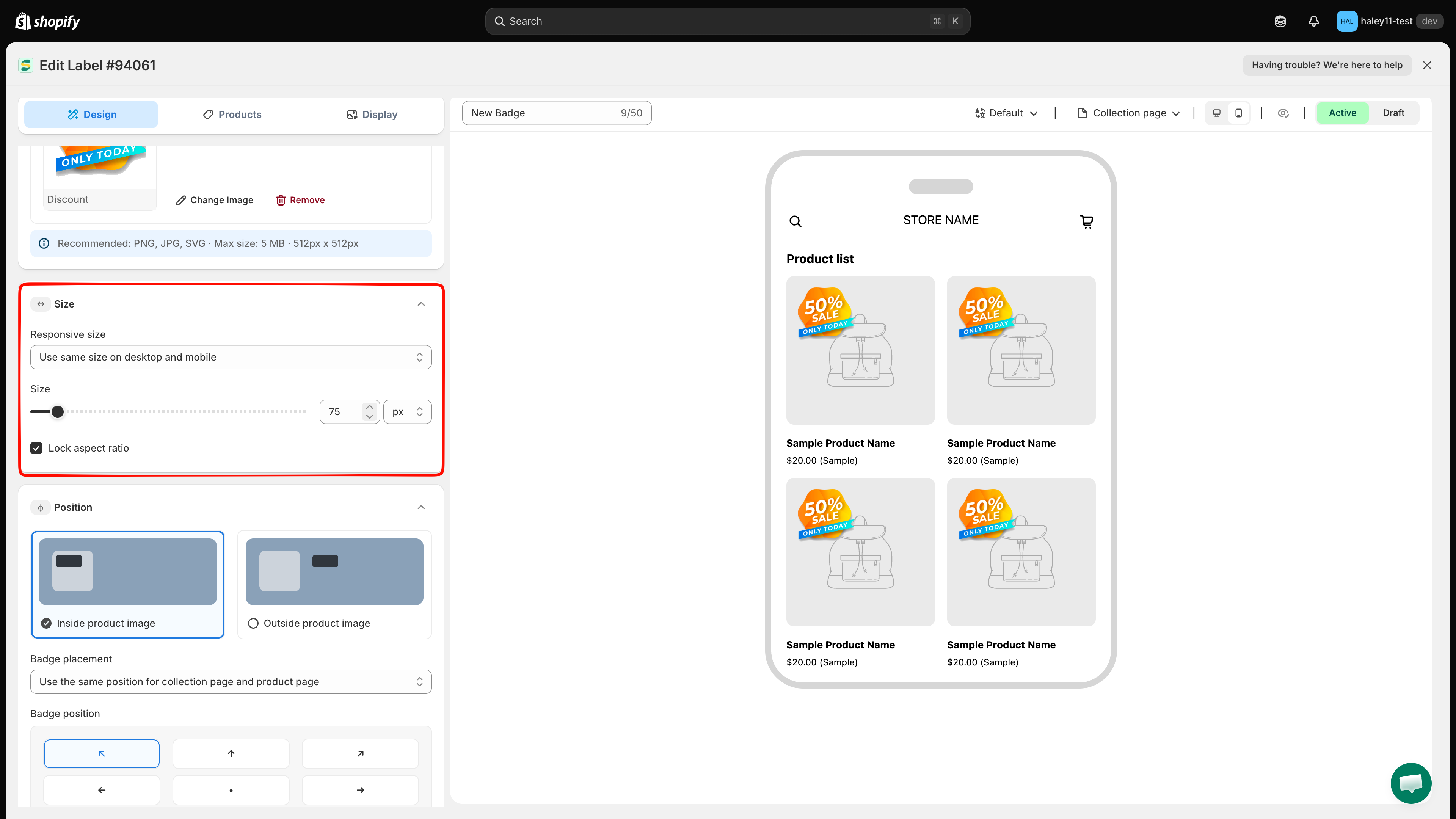

<figure><img src="https://1598842017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1WRTlT5AcaLSAedbCJyZ%2Fuploads%2Fgit-blob-bb68ee019c1bcce5135710b04950912fc02d5f54%2Fimage_38.png?alt=media" alt="Size section in the Design tab of the badge editor"><figcaption><p>Open a badge, stay on Design, and expand Size.</p></figcaption></figure>
{% endstep %}
{% endstepper %}

## Use one size on desktop and mobile

Under **Responsive size**, keep **Use same size on desktop and mobile** selected when the badge should use one set of dimensions on every device and supported page preview.

* For a **text badge**, set **Width** and **Height** separately.
* For an **image badge** with **Lock aspect ratio** enabled, use the **Size** slider or **Width** field. The height changes automatically to preserve the image proportions.

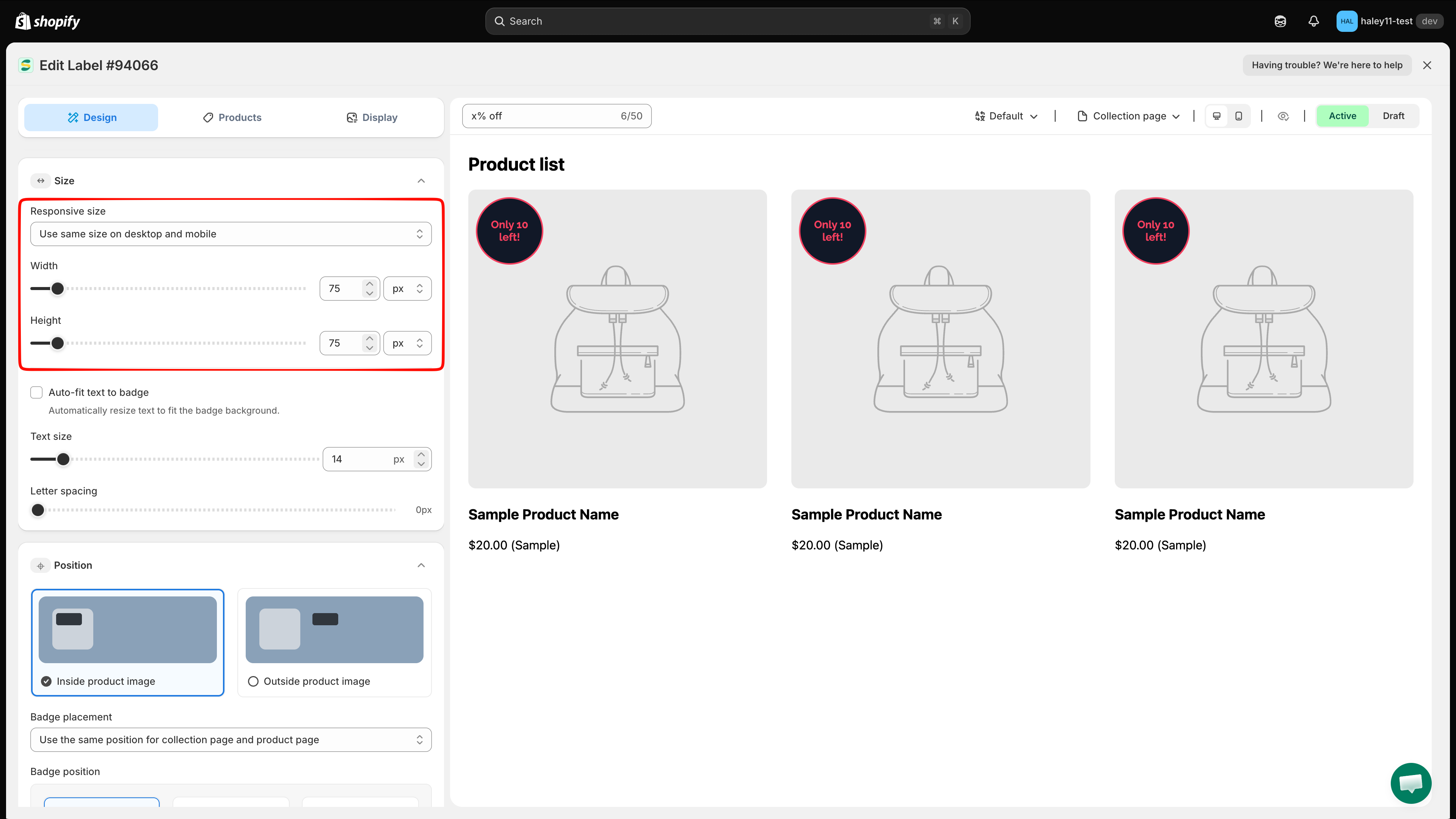

<figure><img src="https://1598842017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1WRTlT5AcaLSAedbCJyZ%2Fuploads%2Fgit-blob-9a58a49f4778096d2f6e80608bf85b269e51a82d%2Fimage_39.png?alt=media" alt="Use same size on desktop and mobile selected for a text badge"><figcaption><p>Use one set of dimensions for desktop and mobile.</p></figcaption></figure>

## Customize each device and page type

Select **Customize desktop and mobile separately** when the badge needs different dimensions in different contexts.

1. Choose **Desktop** or **Mobile**.
2. Choose **Product page size** or **Listing pages size**.
3. Set the dimensions for that combination.
4. Repeat for the other device and page combinations as needed.

| Selection                        | Where the size applies                                |
| -------------------------------- | ----------------------------------------------------- |
| **Desktop > Product page size**  | Product pages on desktop                              |
| **Desktop > Listing pages size** | Listing pages, including collection pages, on desktop |
| **Mobile > Product page size**   | Product pages on mobile                               |
| **Mobile > Listing pages size**  | Listing pages, including collection pages, on mobile  |

{% hint style="info" %}
The editor uses the label **Listing pages size**. Use this tab for collection-page and other product-list previews.
{% endhint %}

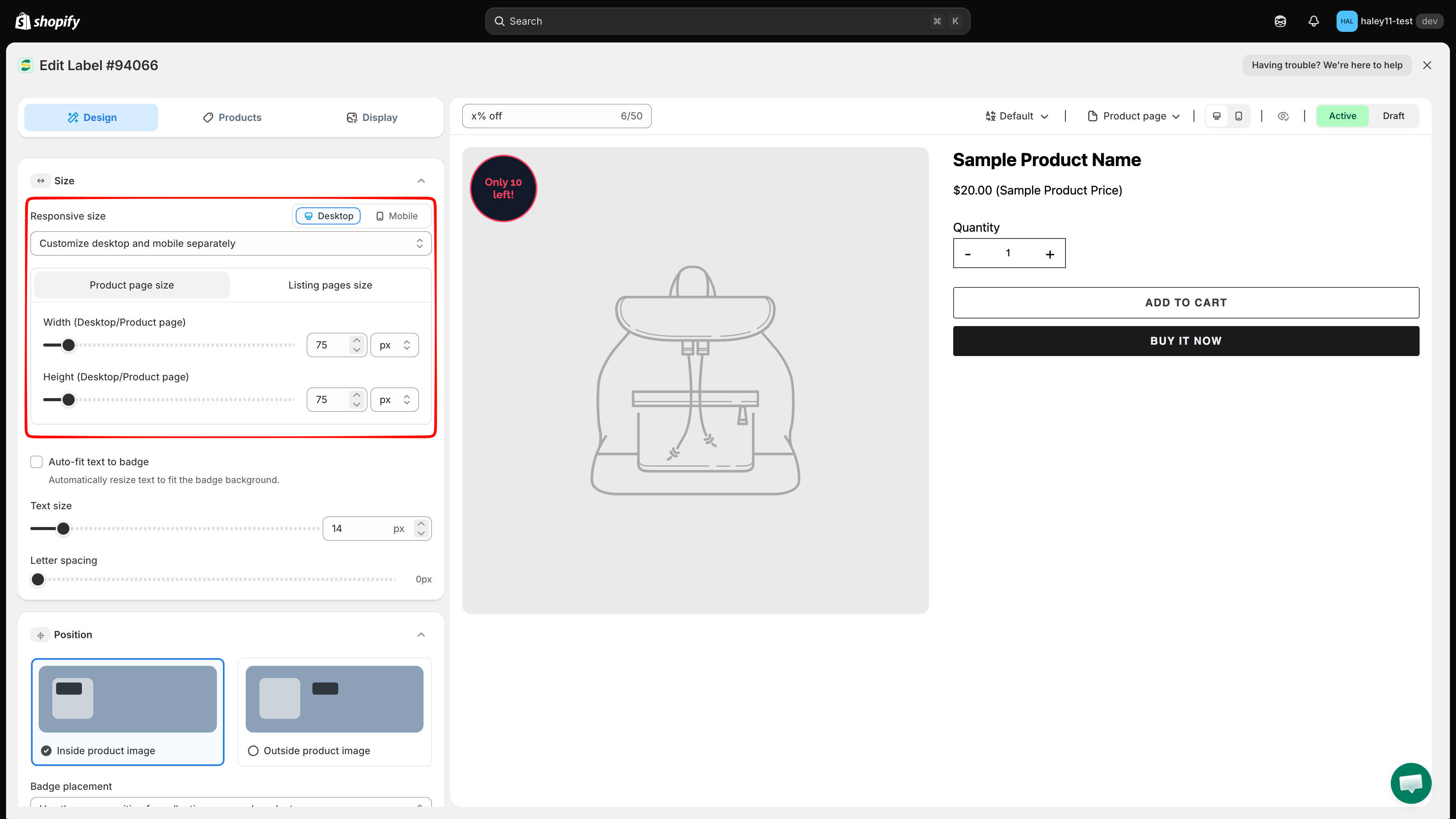

<figure><img src="https://1598842017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1WRTlT5AcaLSAedbCJyZ%2Fuploads%2Fgit-blob-147d27c7e0337cd81d66b8ceb096409dff9f35b9%2Fimage_40.png?alt=media" alt="Separate size controls for desktop, mobile, product pages, and listing pages"><figcaption><p>Select a device and page type, then set the size for that combination.</p></figcaption></figure>

## Choose a size unit

Each dimension can use one of these units:

| Unit   | Use it when                                                                                                                |
| ------ | -------------------------------------------------------------------------------------------------------------------------- |
| **px** | You need an exact dimension in pixels.                                                                                     |
| **%**  | You want the badge to scale relative to the available product-image area. Preview the result on each page type and device. |

For a text badge, **Width** and **Height** have their own unit selectors. They do not need to use the same unit.

## Adjust text badge size

Text badges provide additional controls below **Width** and **Height**:

* **Auto-fit text to badge** off — Set **Text size** as a fixed font size in pixels.
* **Auto-fit text to badge** on — The app automatically resizes the text to fit the badge background, and **Text size** becomes a percentage control.
* **Letter spacing** — Increase or reduce the space between characters in pixels.

{% hint style="info" %}
Turn on **Auto-fit text to badge** when badge text can change length, such as text that contains `{inventory}` or another dynamic variable.
{% endhint %}

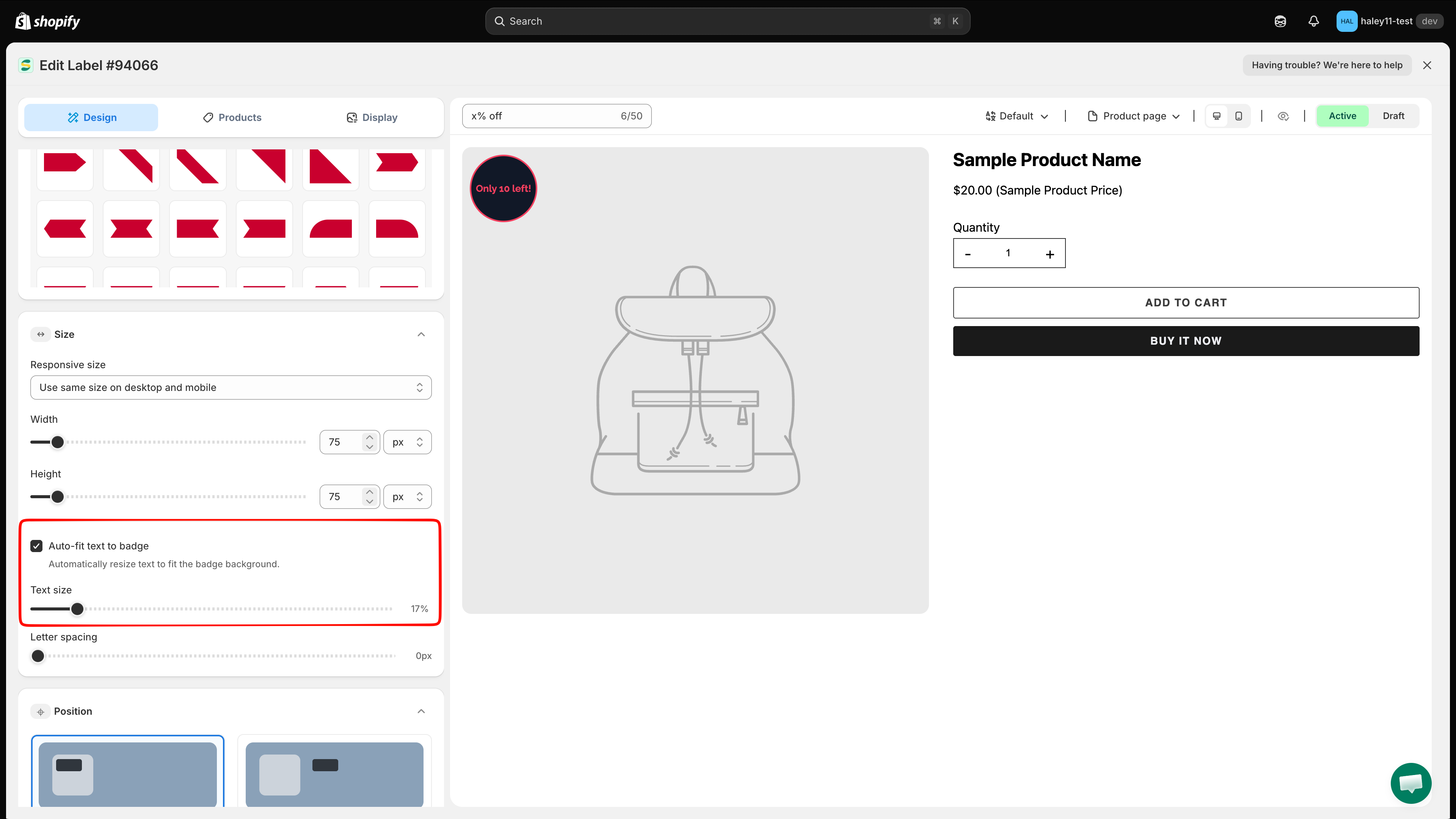

<figure><img src="https://1598842017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1WRTlT5AcaLSAedbCJyZ%2Fuploads%2Fgit-blob-645b0b6c466610994bf3b4b34fe3994d4dec5424%2Fimage_41.png?alt=media" alt="Auto-fit text to badge enabled with percentage-based text size"><figcaption><p>Enable Auto-fit text to badge to keep changing text inside the badge background.</p></figcaption></figure>

## Keep or change an image badge's proportions

For image badges, **Lock aspect ratio** is enabled by default.

* Keep it enabled to resize the image with one **Size** or **Width** control while preserving the source proportions.
* Turn it off only when you need to set **Width** and **Height** independently. Changing them to a different ratio can stretch or squash the image.

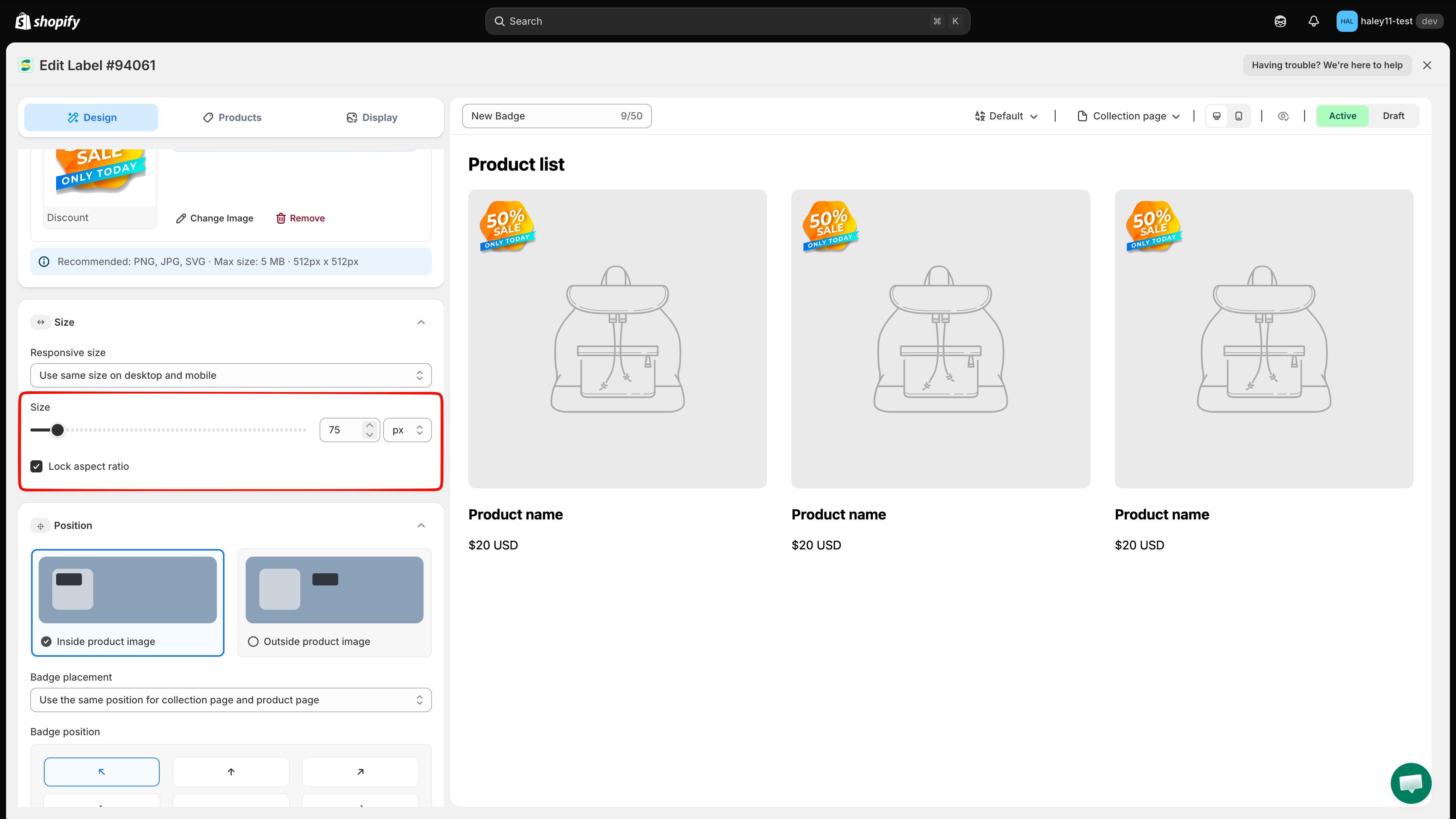

<figure><img src="https://1598842017-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1WRTlT5AcaLSAedbCJyZ%2Fuploads%2Fgit-blob-d832d6f26f65b6e92bd31d5c998a429a090fe0bd%2Fimage_42.png?alt=media" alt="Image badge Size controls with Lock aspect ratio enabled"><figcaption><p>Keep Lock aspect ratio enabled to resize an image badge without distorting it.</p></figcaption></figure>

## Preview and save

Use the preview toolbar to switch between **Product page** and **Collection page**, then check both **Desktop view** and **Mobile view**. When the badge looks correct in every required preview, click **Save**.

{% hint style="warning" %}
If you use separate responsive sizes, preview all four device and page combinations before saving.
{% endhint %}

## Next steps

* [Change badge position](/badges-and-labels/change-position.md) — Place your badge at the right location on product images or page elements.
* [Change badge style](/badges-and-labels/change-style.md) — Customize fonts, colors, borders, and visual effects.

{% hint style="success" %}
**Need support?**

If you run into any difficulty while following these steps, contact us at <support@samita.io>.
{% endhint %}


---
